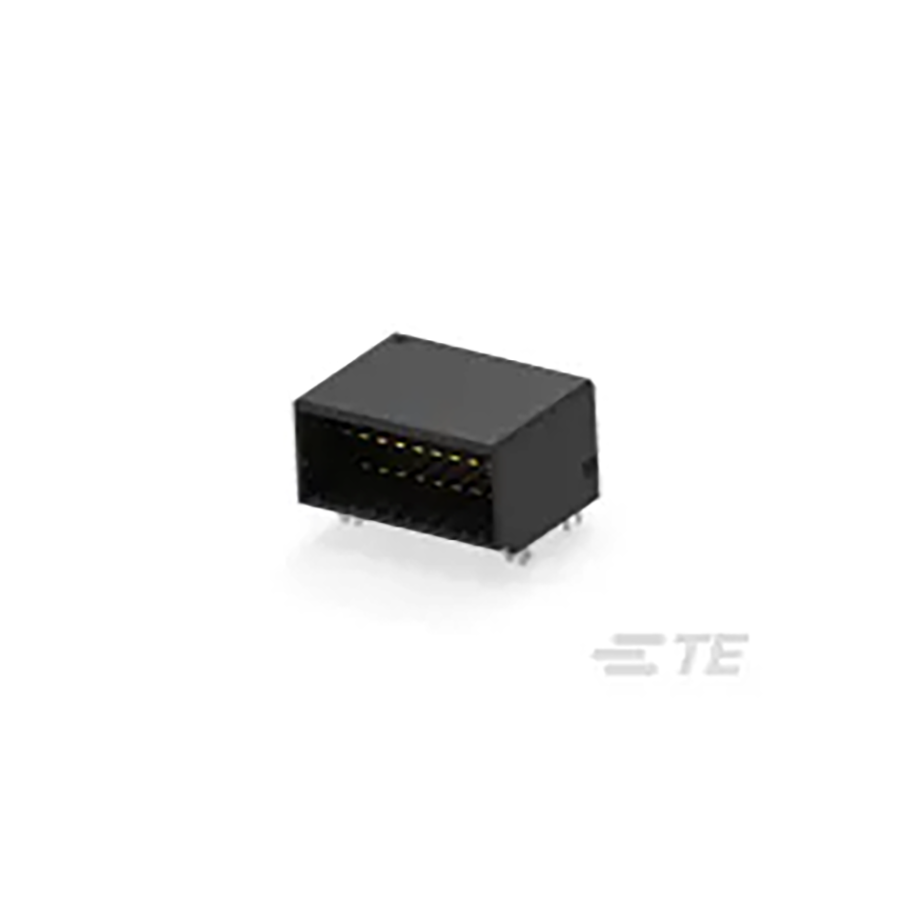

1376137-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376137-1
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:20 Pitch:2.4892 mm
| Parameter | Value |
|---|---|
| Length | 27.686 mm |
| Width | 20.19 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 20 |
| Height | 13.1826 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 20.19 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.4892 mm |
| Number of Terminals | 20 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 3.75 mm |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.4036 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.4 mm |
Stock: 187
Distributors
pcbx
pcbxUnit Price$5.42538
Ext.Price$5.42538
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.42538 | $5.42538 |
| 10 | $4.68074 | $46.80740 |
| 25 | $4.46678 | $111.66950 |
| 50 | $4.26260 | $213.13000 |
| 100 | $4.06776 | $406.77600 |
